Usage of candy round tube box machine

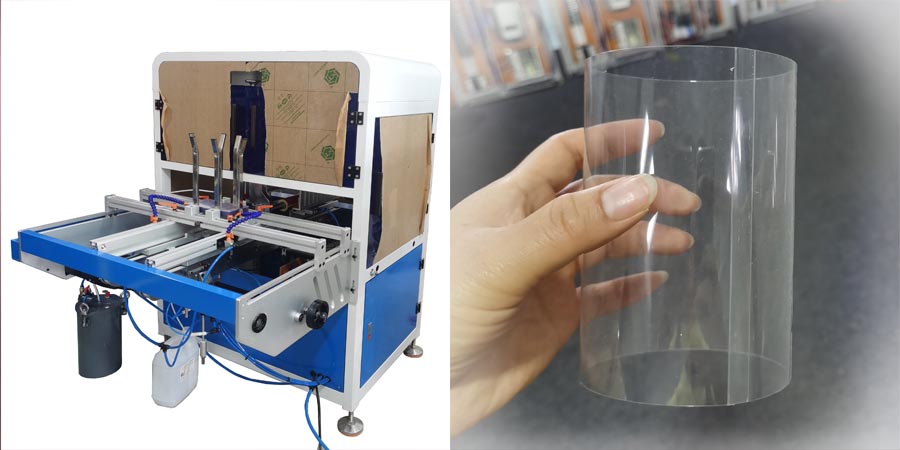

This automatic plastic sheet cylinder gluing machine (Model: JC-180SA-G) is an automatic cylinder gluing and forming equipment that can make PVC and PET plastic coil materials into cylinders. This pvc tube boxes machine with some functions such as automatic material feeding, bending and forming, edge gluing with adhesive, and automatic cylinder pushing out. It is usually used for manufacturing packaging pipeline cylinders and packaging containers for food and daily necessities. It is the main production equipment for various circular PVC/PET plastic packaging boxes with different designs.
Features candy round tube box machine
- High-efficiency production: The candy round tube box machine adopts an automatic control system, which can achieve efficient production and improve production efficiency.
- High forming precision: By precisely controlling the forming parameters and pressure, the dimensional accuracy and shape consistency of the formed products can be ensured.
- Wide application range: The pvc tube boxes machine is suitable for the forming requirements of different sizes of PVC/PET sheets through adhesive bonding.
- Simple operation: Operators only need to carry out simple settings and monitoring to complete the forming process, and the operation is simple and convenient.
- High forming efficiency: The cylinder forming machine has the characteristic of rapid forming, could complete the forming process of the cylinder, improving the efficiency.
- Suitable for mass production: It is suitable for occasions requiring mass production and can meet the needs of industrial production.
Equipment Parameters
Customers can choose to add functions such as UV glue dispensing and cylinder punching according to their specific production requirements. After adding the corresponding functions, the working speed will be adjusted accordingly. Here, we only take the standard automatic candy round tube box machine as a reference. The following are the equipment parameters of the standard machine – automatic pvc tube boxes machine.
- Items： Specification
Model： JC-180SA-G
work technology： PVC/PET /glue sealing
input voltage： 220V AC 50/60Hz single phase
tube diameter： 45mm~200mm(for standard model)
tube height：10~390mm
material thickness： 0.12~0.5mm
working power： 1200W
air press range： 4~6pa 350L/min
production range： 500~900pcs/hour( 100mm/length tube)
Raw material width： 635mm /as max width
suitable material： PET/PVC 片材/piece in sheet
Precise： < + 0.1mm
Optional function： PET / PVC /UVglue sealing
mold change time： 15~20minute
gross weight： 800kg
Measurement： 148010001740mm
